On PayPay, to have smooth account linking process QR code based flow is added. Here merchant will create a ACCOUNT LINK QR and display it to the user. User will have to scan QR code with login to his/her PayPay account or login with credentials to authorise OPA client.

Detailed design flow described here

Download Account Link Flow

The PayPay Open Payment API requires that you use TLS 1.2 or higher as a security measure. Note that you cannot connect with TLS 1.0 and TLS 1.1.

To start utilizing our Open Payment API platform, at first the business needs to be onboarded as a PayPay merchant.

This process usually consists of information collection, manual verification, contract confirmation and credentials issuance.

After becoming a merchant on PayPay, the following items would be setup for the client:

• api key and secret
• webhook endpoints
• client IP whitelist

This setup can be managed using our merchant panel/ getting in touch with the sales representative.

Access from users to the PayPay app and PayPay web screen from outside Japan is restricted. Please contact us for details.

To be able to collect payment from PayPay user’s wallet, you need to obtain user’s authorization explicitly.

For each attempt to acquirer user authorization, merchant is required to make a request to "Create Account Link QR Code" API and generate a URL of PayPay permission screen on which user gives his/her consent.

In special cases when a client chooses to enable mandate KYC setting in the authorization process, user might need to go through a few more steps on the permission screen such as KYC data match. If KYC data match fails, user will be given the options either to complete KYC at PayPay or to go back to merchant's page.

Upon successful authorization, a user authorization id will be issued to you per user. You should store this id in your backend and link it to your internal user. Please ensure this user authorization id is not stored on the client side. This id will be used as the user identifier in the Payment, Cashback and Topup requests.

Every user authorization has limited validity time. It will be automatically extended each time you make a payment, grant a balance or re-authorize. You can check the expiry date of the user authorization ID with expiry in the customer event webhook or expireAt in the response data of Get user authorization status. A PayPay user can also revoke the authorizations from PayPay's App without notifying to merchant. In both these cases the user authorization id has to be acquired again. Depending on the user environment, redirects may occur multiple times. Please check here and take appropriate action.

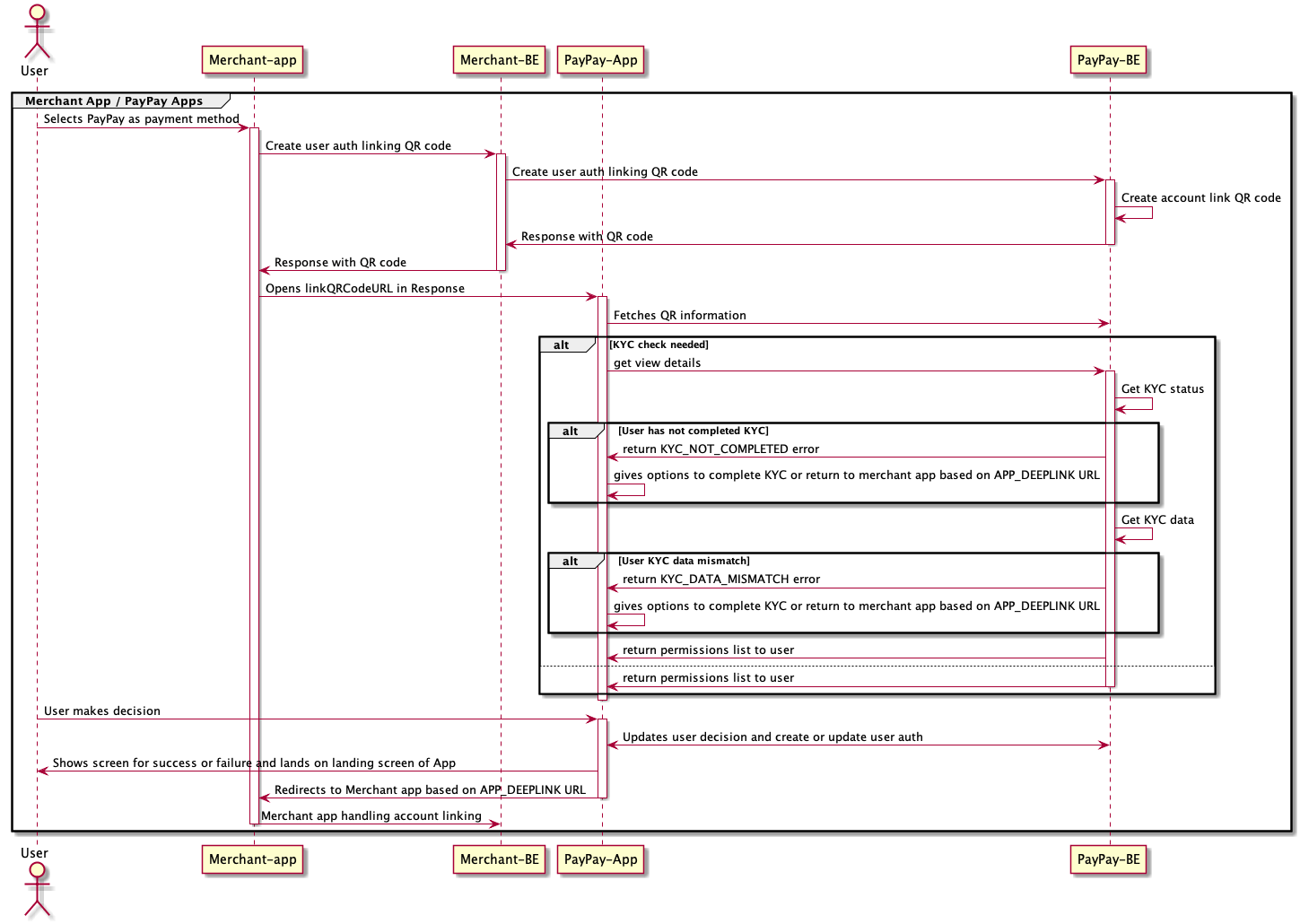

App Invoke flow

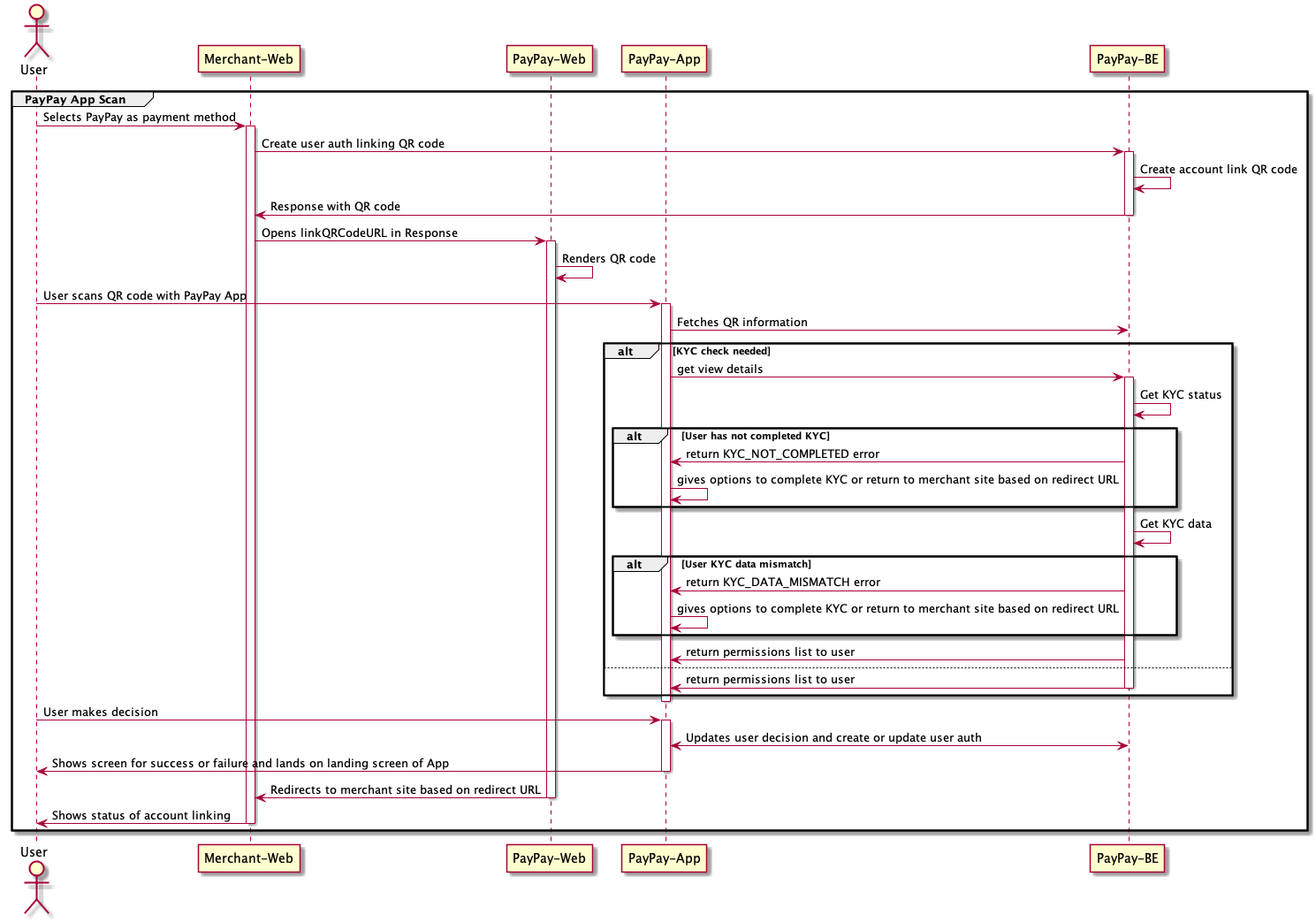

Merchant desktop site with PayPay scan

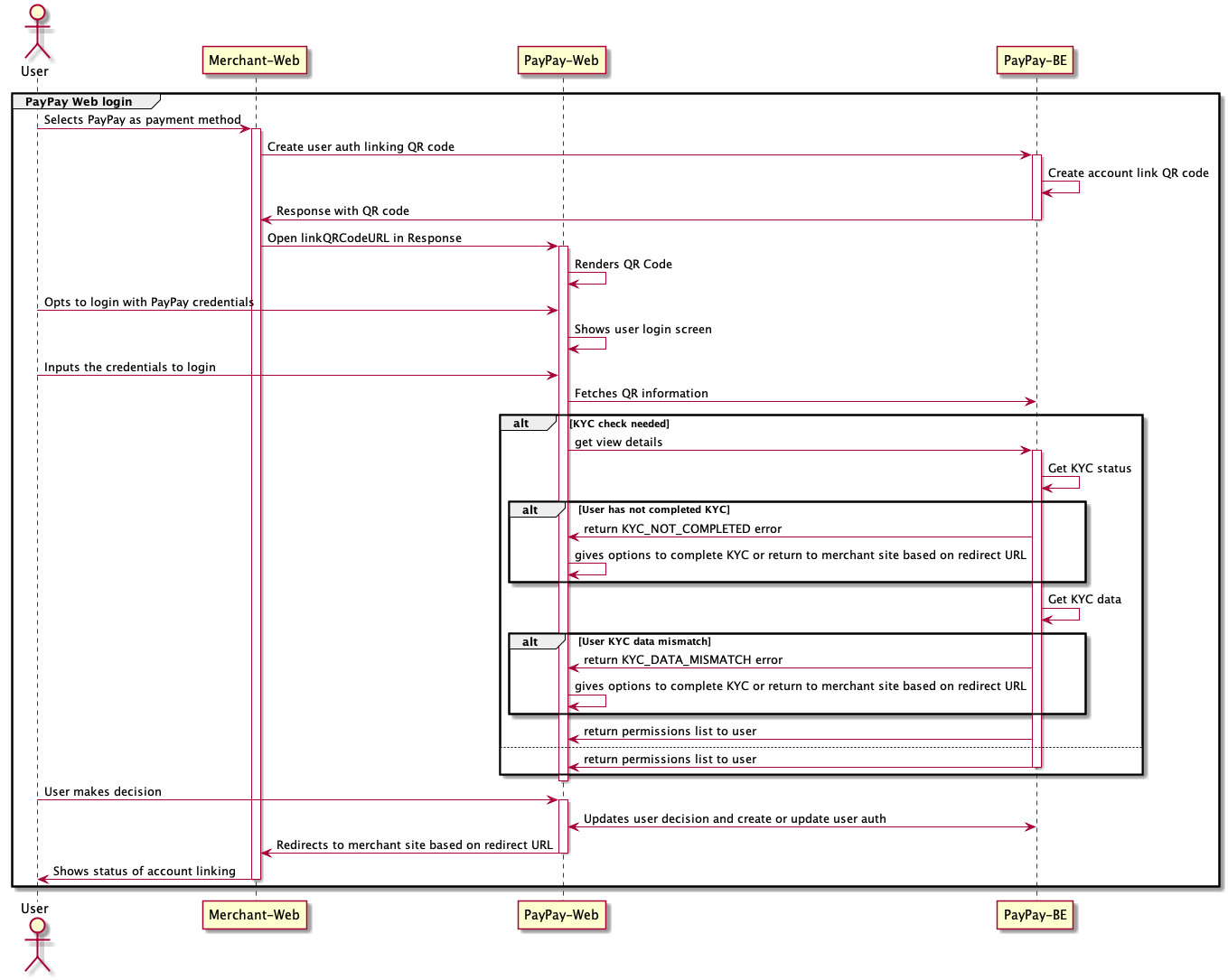

Merchant desktop site with PayPay web login

On PayPay's authorization page the user can choose to accept/decline giving the merchant the authorization. Depending on the user action, the request to acquire user authorization could succeed or fail.

3 methods to fetch the account linking status

There are three ways to receive the result of account linking:

• Payload appended in redirect URL
• Payload of webhook notification
• Polling from "Fetch Status of Account Link QR Code" API

The first two are the recommended way to implement, and the last one is optional. Since the first two options are reactive, they are much more likely to update information. In the case all the redirects and webhook failed, polling is provided as the fallback method to retrieve the status.

If all three methods failed, the situation means that the session of account linking has failed and is unrecoverable. Merchants are requested to initiate a new attempt on your side and inform the user that the account linking has failed.

1. Payload appended in redirect URL

We will encode the result into the JWT token and pass it to the redirect URL provided in the Create Account Link QR Code API (/v1/qr/sessions). The specific parameters we will pass to the redirect URL are as follows:

• apiKey is the api key issued during the onboarding process.
• responseToken is a JWT token signed with the Base64-decoded value of apiKeySecret corresponding to apiKey.

{
  "typ": "JWT",
  "alg": "HS256",
}
.
{
  "aud" : "<merchant organization id>",
  "iss" : "paypay.ne.jp",
  "exp" : 1638198000,
  "result": "succeeded",
  "profileIdentifier": "*******5678",
  "nonce" : "<the same nonce in the request>",
  "userAuthorizationId" : "<PayPay user reference id>",
  "referenceId": "<merchant user reference id>"
}
.
signature

Please note that, profileIdentifier and userAuthorizationId are not part of jwt response if user declines the account link process.

So, after the user accepted or declined the authorization request, we will redirect the webview to the following URL.

https://<redirect url>?apiKey={apiKey}&responseToken={jwtToken}

When the authentication screen expires, redirect to the following URL.

https://<redirect url>

2. Payload of webhook notification

See Webhook section.

3. Polling from "Fetch Status of Account Link QR Code" API

See Fetch Status of Account Link QR Code.

Everything related to OPA API Authorization is described here.

PayPay OPA uses HTTP response status codes and OPA error code to indicate the success or failure of the requests. With these information, you can decide what error handling strategy to use. In general, PayPay OPA return the following http status codes.

Common response codes

Create Account Link QR Code

Fetch Status of Account Link QR Code

The recommended timeout setting is specified in each API. The most important one is for the payment creation api, where the read timeout should not be less than 30 seconds. When timeout happens, it should be treated as unknown payment status.

PayPay can send webhook events that notify your application at the time when event happens on your account. To receive the notification, the client needs to set up a webhook url where we will use HTTP POST to send data to the client. Each notification event will have one notification_type field which can be used by clients to determine which event has happened.

When your application receives the notification via webhook, it should respond with a HTTP 200 OK status code. Although not required, a response body with a short text description (like "OK") is recommended.

For security, it is highly recommended that clients whitelist PayPay IP address to receive notifications.

Please keep reading to learn for which events we currently send webhook notifications.

Events related to user state changes. The authroization comes as is.

The following are examples of the possible notification types:

This notification is sent after the client successfully acquired the user's authorization.

{
  "notification_type": "customer.authroization.succeeded",
  "notification_id": "evt_aXnbdeFt2Ke",
  "createdAt": 1349654313,
  "referenceId": "yyyy",
  "nonce": "12345",
  "scopes": "direct_debit",
  "userAuthorizationId": "xxxxx",
  "profileIdentifier": "*******5678",
  "expiry": 1669734000
}

This notification is sent after the client failed to acquire after going through the user authorization flow.

{
  "notification_type": "customer.authroization.failed",
  "notification_id": "evt_aXnbdeFt2Ke",
  "createdAt": 1349654313,
  "referenceId": "yyyy",
  "nonce": "12345",
  "result": "declined",
  "reason": "invalid scope"
}

The result will have declined, kyc_not_completed or kyc_data_mismatch.

• declined if the request is rejected by user
• kyc_not_completed if user has not completed kyc
• kyc_data_mismatch if user kyc data is mismatched

This notification is sent after a user revoked the ever granted authorization from the PayPay app.

{
  "notification_type": "customer.authroization.revoked",
  "notification_id": "evt_aXnbdeFt2Ke",
  "createdAt": 1349654313,
  "userAuthorizationId": "xxxxx",
  "referenceId": "yyyy"
}

In order to ease third party account linking experience, we will increase user authorization expiry from the date of last transaction/ grant. So merchants and users will have to give authorization less often.

This notification is sent after user's authorization is extended from PayPay side.

{
  "notification_type": "customer.authroization.extended",
  "notification_id": "evt_aXnbdeFt2Ke",
  "createdAt": 1349654313,
  "scopes": "direct_debit",
  "userAuthorizationId": "xxxxx",
  "expiry": 1669734000
}

This notification will be sent after a user has been deleted.

sample event:

{
  "notification_type": "customer.authorization.canceled",
  "notification_id": "evt_aXnbdeFt2Ke",
  "createdAt": 1349654313,
  "userAuthorizationId": "xxxxx"
}
